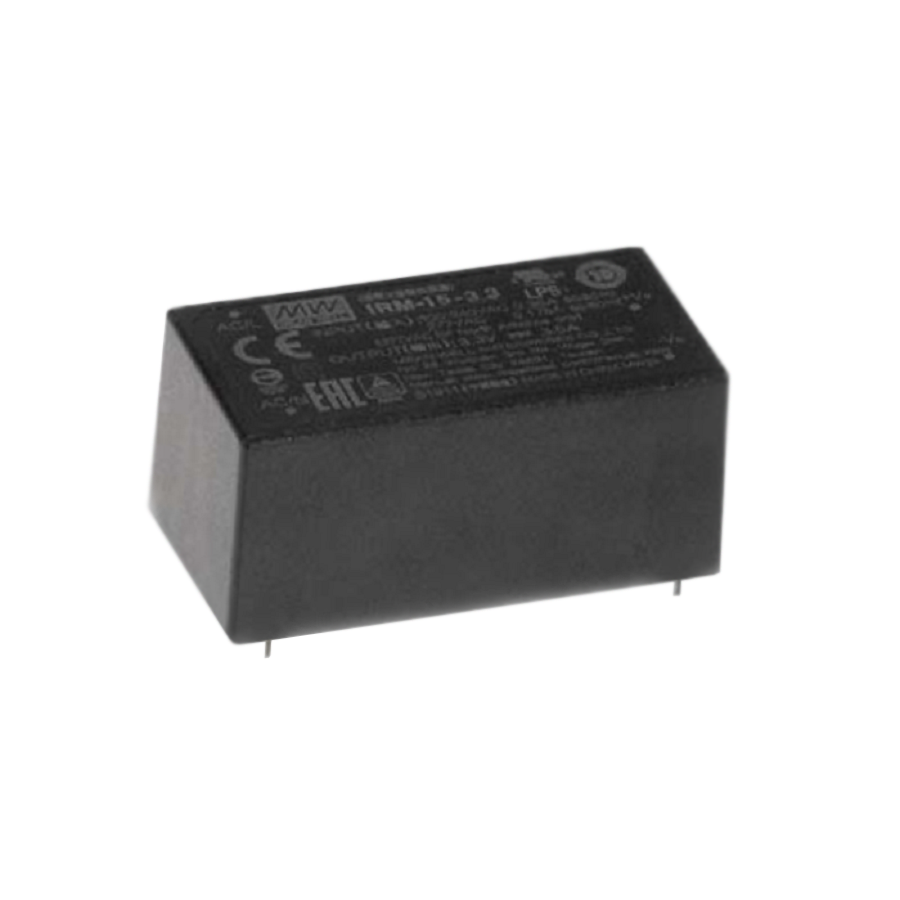

IRM-15-12
Manufacturer:
Mean Well
Mfr.Part #:
IRM-15-12
Datasheet:
Description:
Board Mount Modules DIP-4 module Through Hole Current - Output 1:1.25 A Voltage - Output 1:12 V 82 %
| Parameter | Value |
|---|---|
| Length | 53 mm |
| Width | 28 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -30 °C |
| Number of Pins | 4 |
| Power Rating | 15 W |
| Height | 24 mm |
| Packaging | Box |
| RoHS | Compliant |
| Weight | 59 g |
| Features | Universal Input |
| Approvals | CB, CE, TUV, UL |
| Min Input Voltage | 85 V, 120 V |
| Output Current | 1.25 A |
| Output Voltage | 12 V |
| Max Power Dissipation | 15 W |
| Max Output Current | 1.25 A |
| Max Input Voltage | 305 VAC, 430 VDC |
| Number of Outputs | 1 |
| Nominal Supply Current | 1.25 A |
| Output Power | 15 W |
| Current - Output 1 | 1.25 A |
| Efficiency | 82 % |
| Voltage - Output 1 | 12 V |
| Max Output Power | 15 W |
Stock: 1826
Distributors
pcbx
pcbxUnit Price$5.38178
Ext.Price$5.38178
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.38178 | $5.38178 |
| 10 | $4.88165 | $48.81650 |
